Mobotix S16B Dual Thermal Camera with Radiometry

Configure and learn about your Mobotix S16B Dual Thermal Camera with Radiometry below!

Or call one of our VoIP Experts at (800) 398-8647 or via email at [email protected].

From: $1,113.00

To: $10,626.10

As Configured: $0.00

Configure Now
keyboard_arrow_down
Product Details
Manufacturer:
Mobotix
Model:
S16B-Thermal-TR
SKU:
02-128428
Tech Specs
Manufacturer:
Mobotix
Model:
S16B-Thermal-TR
Camera Type:
No
Solution Overview

Mobotix S16B Dual Thermal Camera with Radiometry

Mobotix S16B Dual Thermal Camera with Radiometry

The Mobotix S16 Dual Thermal Camera is a powerful security system that is compact and flexible. The S16 can be installed to capture footage in two separate areas thanks to its two long sensor cables. One camera can be used to capture various areas. The S16B can be used with two 360° angles making it a double hemispheric camera that offers the same coverage as eight conventional cameras. That's a strong feature to beat!

Mobotix S16B Dual Thermal Camera with Radiometry Overview

The S16B Thermal can operate with a maximum of 8 watts of power. No extra cooling, heating or PTZ motors are necessary even when there are two thermal image sensors connected.

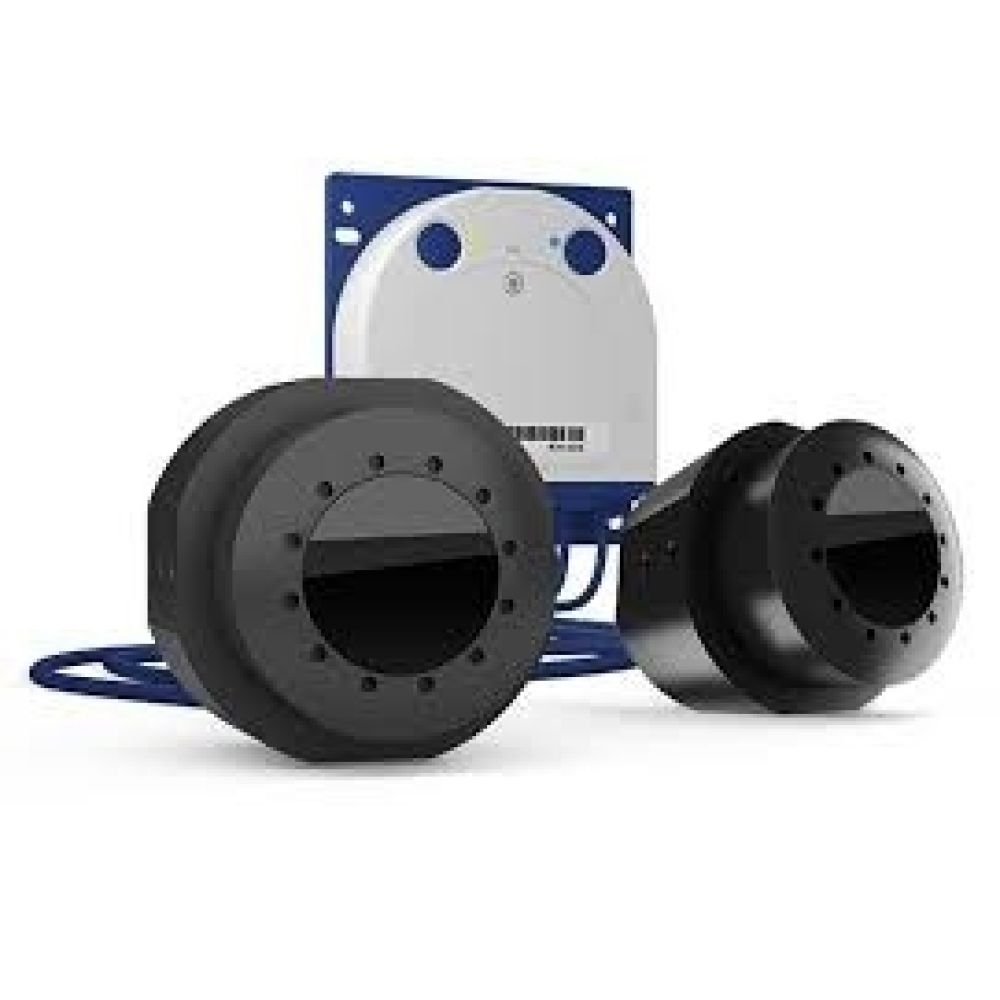

The S16 has a basic module to which one or two sensor modules (lens plus sensor board, LED's and microphone) can be connected. Select one or two weatherproof thermal sensor modules for thermographic requirements. There are two types of thermal sensor modules, each with three different lenses, which can also be combined with thermal radiometry technology for temperature-related events.

The S16's robust metal housing is discreetly installed behind a wall or ceiling panel, and the lenses that connect to it, which can measure up to three meters in length, are the only visible part of the camera when installed. The flat housing includes integrated long-term flash memory and external connectors (Ethernet, MiniUSB, and audio).

The S16 has no moving parts and thus does not require any maintenance. It operates quietly and discreetly and typical applications include hotels buses, trains, and restaurants.

Various mount options are available to house the lenses.

Mobotix S16B Thermal Camera Features and Specifications:

  • Mx6 system platform with H.264 and ONVIF compatibility
  • S16 DualFlex housing with either one or two thermal sensor modules
  • 18 module options: with/without TR, three fields of view, three housing designs
  • Optical and thermal sensor modules can be combined as desired
  • MxActivitySensor can also be used in total darkness
  • PoE thermal camera with a max. power consumption of 8 W
  • Weatherproof and robust camera housing (IP66, IK06)

Mx-S16B Built-in dual lens camera w/o sensor modules *
This is the base for the sensor modules and it is required for the installation of the camera

1 x Mobotix Mx-S16B Built-in dual lens camera w/o sensor modules   +$877.00

Thermal Sensors and Day Sensors *
Select the sensor and lenses combinations that you need. The S16 supports (2) sensor modules

S16 Mounts

Select the mount that you need for your type of installation

Mobotix Sensor Cables

For connecting optical sensor modules and BlockFlexMounts with 6MP sensors and Thermal sensor modules

Optional accessory

This can send ambient room temperature to the camera for auto adjustments)
