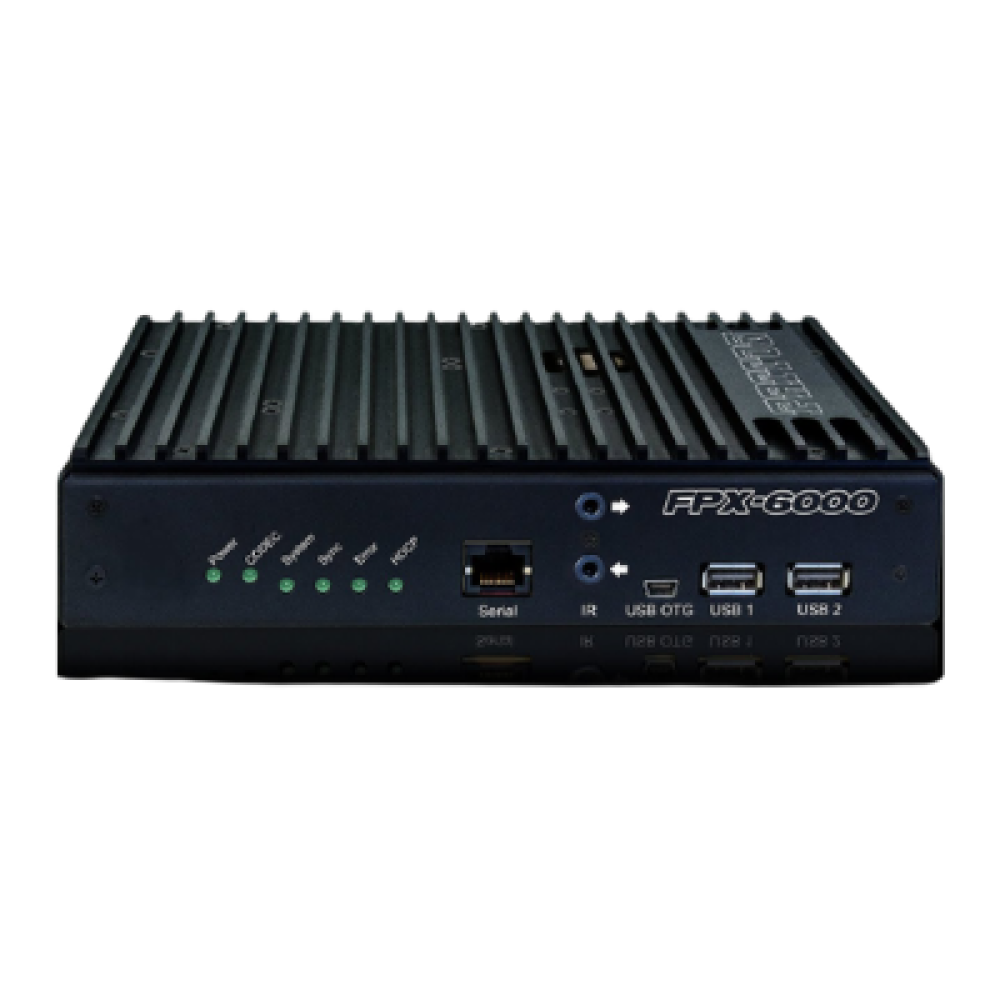

Patton FiberPlex FPX6000 Dante Audio Video over IP Gateway FPX6000T/A3/PD48

Please Chat or Call our VoIP Experts at 1-800-398-8647 to pre-order the Patton FiberPlex FPX6000 Dante Audio Video over IP Gateway today!

See all reviews

Product Details
Manufacturer:
Patton
Model:
FPX6000T/A3/PD48
SKU:
02-131243
MSRP Price:
$2,240.00
Tech Specs
Manufacturer:
Patton
Model:
FPX6000T/A3/PD48

Patton FiberPlex FPX6000 Dante Audio Video over IP Gateway FPX6000T/A3/PD48 Overview

Patton's FPX6000 allows Dante AV with 8 audio channels (transmit or receive) and 1 HDCP encryption support video channel (transmit or receive) to be simply integrated onto an existing Ethernet network backbone without the performance and administration concerns associated with audio and video over IP. Dante's sub-microsecond audio and visual synchronization removes alignment issues. Dante AV transports audio and video with minimal deterministic latency by using a single network clock to keep the whole system in sync, regardless of the number of endpoints. In additional to high-performance Dante AV with audio/video-over-IP, the Patton FPX6000 IP Gateway has a slew of peripheral connectivity choices such as USB 2.0 and USB OTG for keyboard and mouse, infrared for remotes, and even serial signals for PTZ control and more... all over IP!

Patton FiberPlex FPX6000 Dante Audio Video over IP Gateway FPX6000T/A3/PD48 Features

  • Up to eight channels at 44.1, 48, 88.2 or 96 kHz. HDCP sourced audio channels limited to 48 kHz
  • Up to 8192 samples (170 ms @ 48 kHz) audio buffering per channel (receiver only)
  • Built-in 8-channel asynchronous sample rate converter (in transmitter only)
  • 2 x 10/100/1000BaseTX (Dante Network Port; Switch or Daisy-chain)
  • Audio Flows In/Out: Up to 8x8 (unicast or multicast
  • Video Flows In/Out: 1x1 (unicast or multicast)
  • 1 HDMI 2.0/1.4b input (T model) or output (R model)
  • Built-in HDCP encryption/decryption for video
  • Accepts any bitstream from external codec
  • Video transport formats: Dante Video over IP
  • Up to 4K60 input/output
  • HDR support
  • HDMI monitor output loop-through (T model)
  • 2 x USB 2.0 Type-A for keyboard and mouse
  • Full Dante API support
  • Made in the USA
