Sangoma A200-FXO Analog Telephony Card

The Sangoma A200-FXO has been pronounced End of Life by the manufacturer. For a comparable product please see the Digium A4A Series

See all reviews

Product Details
MSRP Price:
Tech Specs
# of FXO Ports:

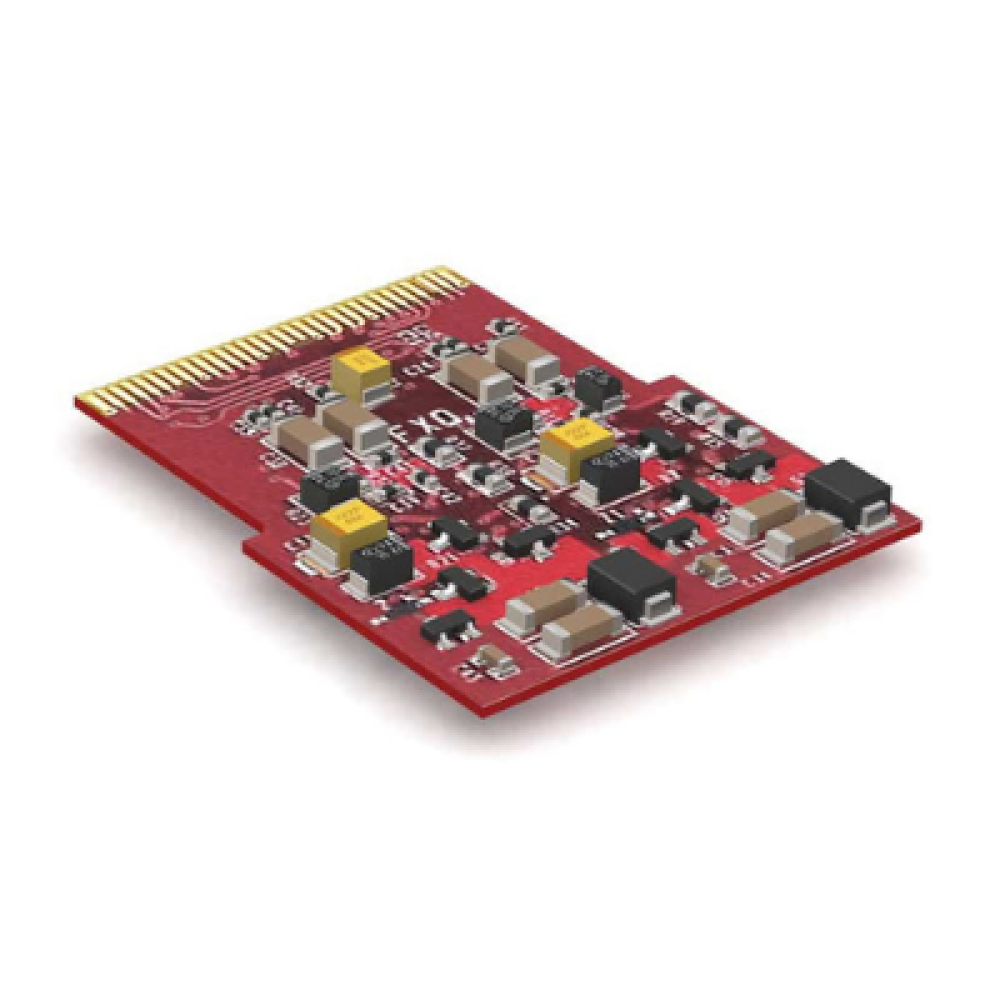

Sangoma A200 FXO Module Overview

The Sangoma A200 analog telephony card for Asterisk, FreePBX, and PBXact phone systems is the most scalable analog card, featuring two (2) to 24 ports. On a single PCI Express slot, that's up to 24 PSTN calls. Since the cards are interchangeable, you can mix and match FXO and FXS interfaces to create the exact port setup you need. The A200 telephony card comes standard with 2-4 analog ports and can be expanded to 24 ports with the addition of daughterboards and the Remora backplane system. Customers trust Sangoma to offer value-based telephony solutions because of hardware echo cancellation options, compliance with most commercial grade servers and Linux operating systems, and a lifetime warranty.

Sangoma A200 FXO Module Features

  • Each module supports up to two FXO channels, and up to two PSTN trunk lines
  • 4 x 4-pin RJ11/4 narrow jack. Scalable to 24 ports when adding 5 x daughterboard with backplane adaptor
  • All ports can be FXS or FXO using dual-channel modules
  • Cables included: 4x 2m cables terminating in a narrow RJ11/4 plug at one end and a telephone-standard RJ11/6 plug at the other
  • Fully PCI 2.2 compliant, compatible with all commercially available motherboards, and shares PCI interrupts
  • 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/
  • DTMF decoding and tone recognition
  • G.168-2002 echo cancellation in the hardware
  • No CPU load as a result of echo cancellation
  • Dimensions: 120mm x 55mm for use in restricted chassis
  • Power Supply: PCI Express: 2.64 W (0.8 A @ 3.3 V) + 4.2 W (0.35 A @ 12 V) per FXS module
