Mediatrix 4116 SIP DGW 2.0 (Discontinued)

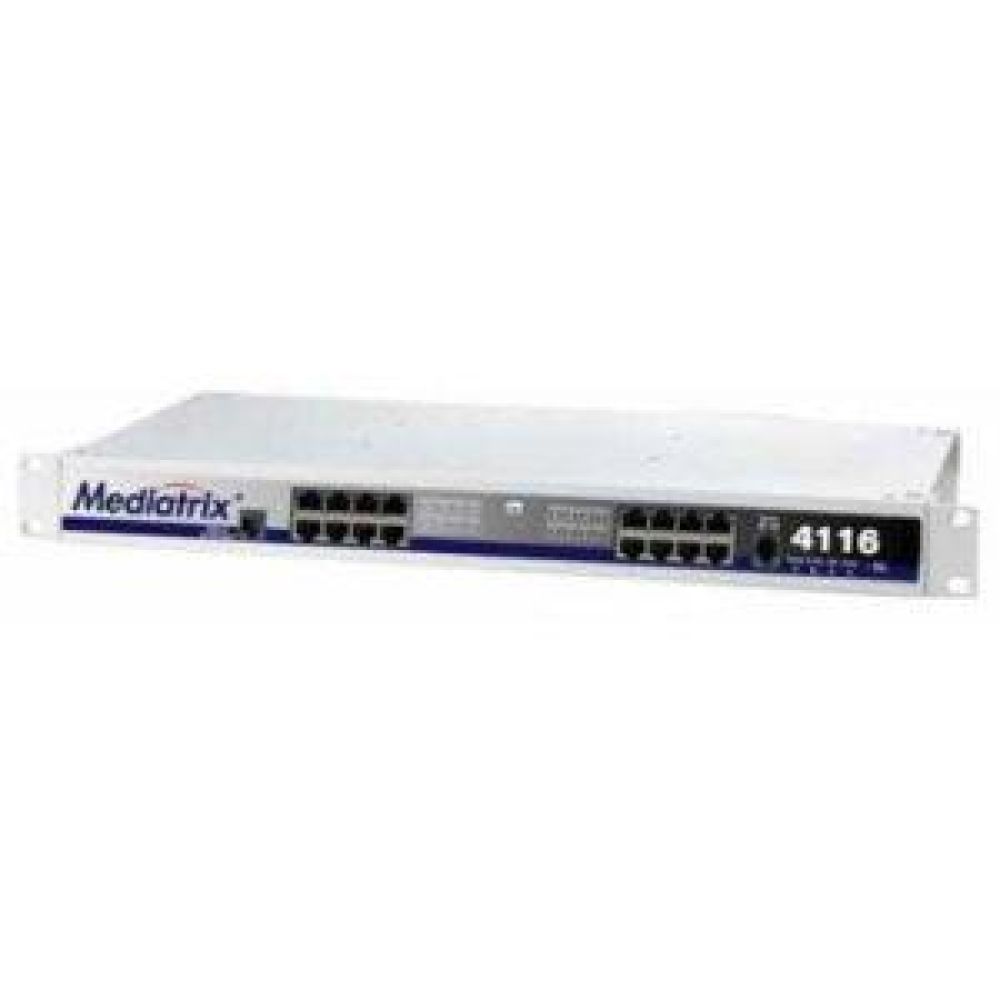

Mediatrix 4116 SIP DGW 2.0 VoIP Gateway

The Mediatrix 4116 SIP is a high-quality and cost efficient VoIP gateway connecting larger branch offices and multi-tenant buildings to an IP network, while preserving investment in analog telephones and faxes. The Mediatrix 4116 access devices allow Service Providers to deploy rapidly and economically their solutions in medium-size premises and they are the ideal solution for branch office connectivity to larger private networks. The Mediatrix 4116 connects up to 16 analog phones and/or faxes to a broadband modem or LAN.

Mediatrix 4116 SIP DGW 2.0 VoIP Gateway Overview:

The Mediatrix 4116 has the additional benefit of supporting high compression codecs simultaneously on each analog voice ports, thus saving valuable bandwidth. As all other Mediatrix devices, the 4116 provides a web interface, giving users a convenient access to the unit for initial set-up. The devices can also auto-provision by fetching their encrypted configuration from a TFTP or HTTP server, making installation secure and transparent to the end-users. To further facilitate deployments, factory-loaded configurations are possible. In addition, an optional intelligent PSTN bypass allows Mediatrix 4116 users to make emergency calls and maintain their phone service in the event of a power outage or network failure.

Mediatrix 4116 SIP VoIP Gateway Features & Functions:

• 16 FXS ports to connect up to 16 analog phones or fax machines
• 1 10/100 ethernet port
• SIP v5.0 firmware
• Carrier-grade voice quality
• Fax over IP support, including T.38
• PSTN bypass emergency calls
• Up to 24 simultaneous calls
• Automatic firmware and configuration file download
• SNMP and web management
• TFTP or HTTP auto-provisioning

A Note About DGW:

The Dgw v2.0 software is backward compatible with previous SIP v5.0 for all basic call scenarios. The Dgw v2.0 platform contains major differences compared to the SIP v5.0 platform. You may thus encounter some behavioral differences after upgrading to Dgw v2.0. Media5 very strongly recommends to fully test your scenarios in a controlled environment before deploying a live unit running Dgw v2.0.

For More information, read the DGW Firmware Application launch notes on Mediatrix's webpage.
