CyberData 011426 RFID Keypad Secure Access Control Endpoint

Please allow for a 1 - 2 day lead time.

Availability: In stock

The CyberData SIP-based RFID/Keypad Secure Access Control endpoint uses the existing VoIP network infrastructure to securely unlock and lock gates or doors. Read More
$710.00
keyboard_arrow_down
Options

See all reviews

Product Details
Manufacturer:
CyberData
Model:
011426
SKU:
02-125987
MSRP Price:
$710.00
Tech Specs
Manufacturer:
CyberData
Model:
011426

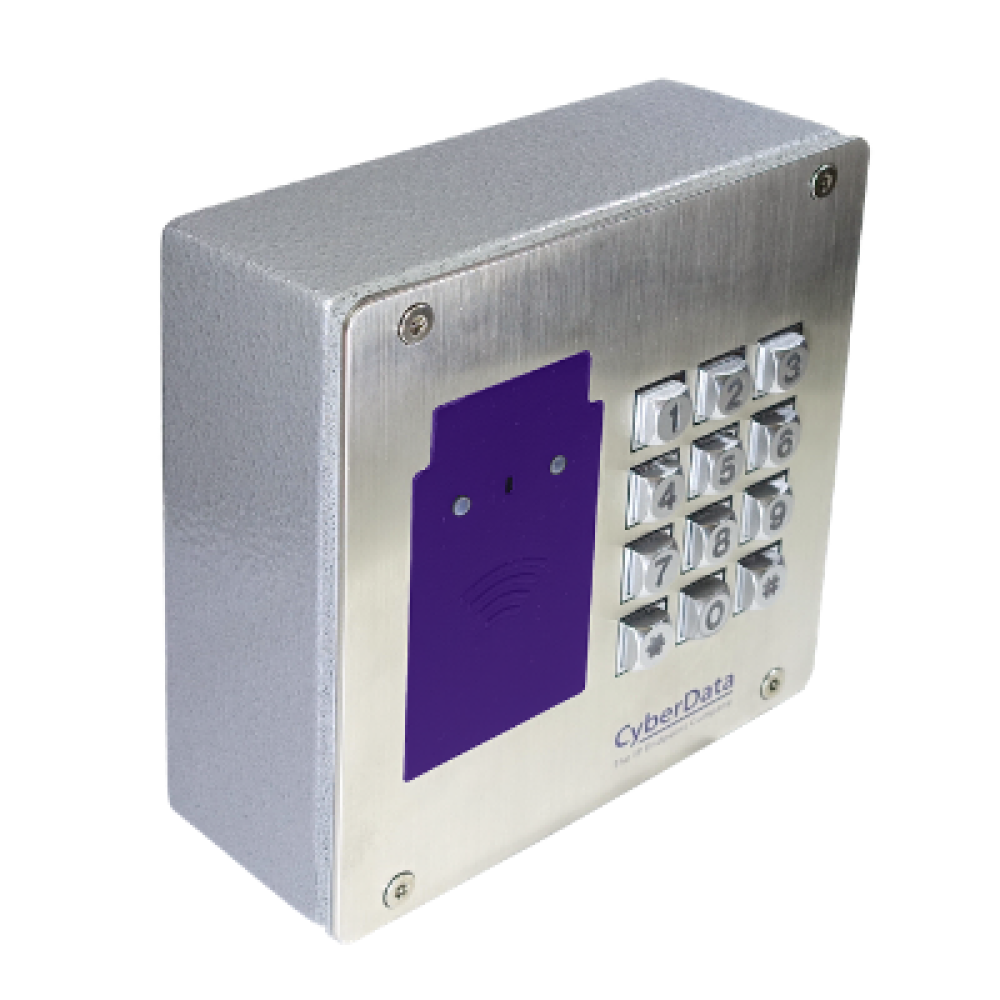

CyberData 011426 RFID/Keypad Secure Access Control Endpoint

The CyberData SIP-based RFID/Keypad Secure Access Control endpoint uses the existing VoIP network infrastructure to securely unlock and lock gates or doors. It supports single and dual factor authentication.
PoE-powered and in a secure outdoor-rated case, the RFID-Keypad Secure Access Control endpoint can store up to 500 access codes. There is a blacklisted code list that when activated, will make a phone call and play a pre-recorded message or can broadcast a multicast message to IP notification endpoints. Good code and blacklisted code lists can be updated on the web interface or autoprovisioned by a remote server.

Security
CyberData has implemented a high level of security on its RFID products. Data between the card and the reader are encrypted using AES128 making sure that hackers would not be able to “spy” on the cards data being sent to the reader and duplicate that card to provide access.

Card Authentication
When a card is read, there is an additional security step. The reader and the card go through a complex mathematic process where they compare encrypted security keys. This process is called Mutual Authentication. It guarantees that communication between the card and the reader can never be copied and used to produce a duplicate card. On a good read, the keys will match and the reader will extract the encrypted data from the card to validate if the card is active in the system. If the keys do not match, the card will be rejected.

Device ships with 5 RFID cards

CyberData 011426 Features

  • SIP compliant
  • PoE 802.3af enabled (Powered-over-Ethernet)
  • Mifare Plus X 2K/4K cards are supported for a high level of encryption
  • IP 65 outdoor-rated
  • Alert buzzer
  • Red/Green lock status lights
  • Can operate in standalone mode. PBX not required. Future-proof and adaptable when upgrading to new VoIP PBX
  • Built in time of access scheduler
  • Local and remote logging with time stamp
  • NTP time support
  • Network web management
  • Supports 500 Access Codes
  • Blacklisted code alert via dialout and multicast stored message
  • Network downloadable firmware
  • Dry contact relay to trigger door lock or unlock gates
  • Door closure and tamper alert signal
  • Support for CyberData's Networked Dual Door Strike Relay (Part number 011375) and Intermediate Door Strike Relay (Part number 011269)
  • Security Torx screws with driver kit included
