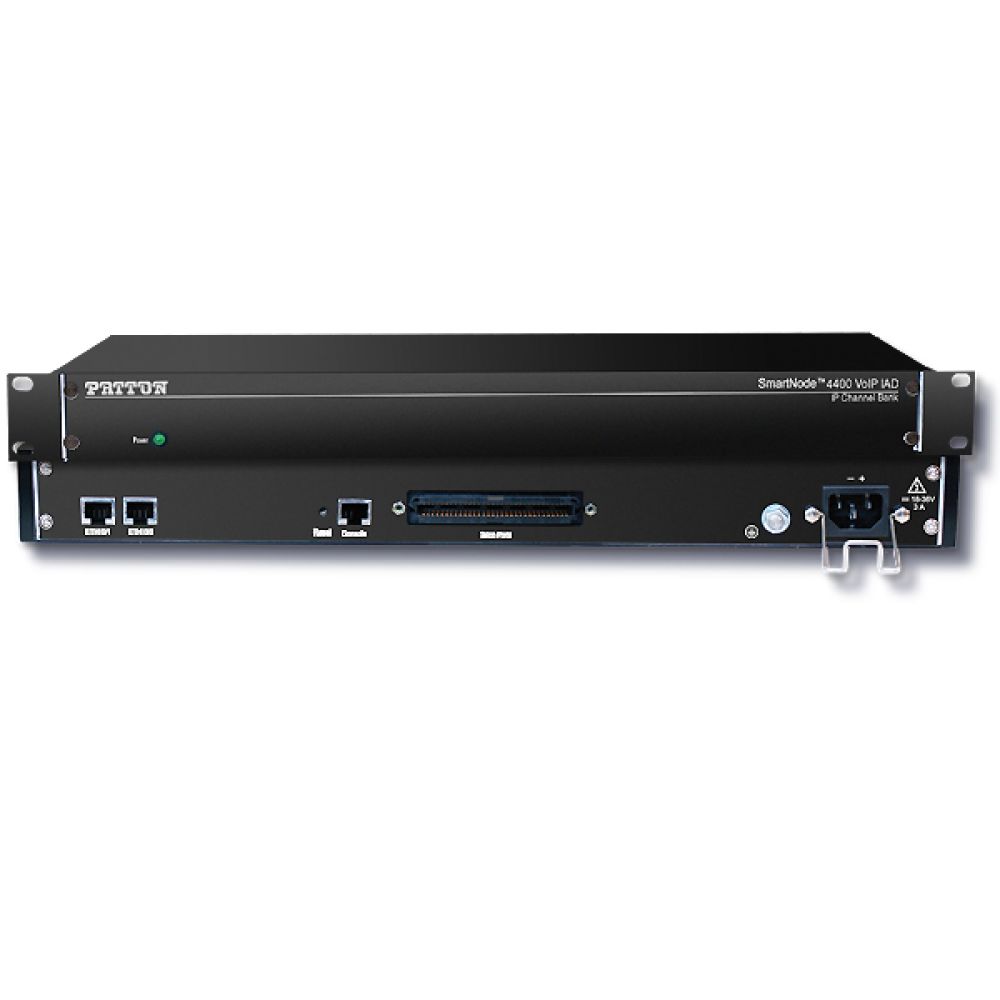

Patton SN4432/JS/UI Gateway

is your business set up for wfh?

Availability: In stock

The Patton SmartNode 4432 IPChannel Bank is the perfect VoIP gateway for applications requiring 32 concurrent analog/fax calls within a single redundant solution. Read More
$2,068.00
keyboard_arrow_down
Options

See all reviews

Product Details
Manufacturer:
Patton
Model:
SN4432/JS/UI
SKU:
02-110051
Warranty:
1 Year
MSRP Price:
$2,068.00
Tech Specs
Manufacturer:
Patton
Model:
SN4432/JS/UI
# of Ethernet Ports:
2

Patton Smartnode 4432 32FXS Gateway

The Patton SN4400 SN4432/JS/UI VoIP Gateway supports key industry-standard VoIP signaling protocols such as SIP, H.323, and T.38 Fax Relay—plus fax-bypass and modem-bypass. This ensures interoperability with the leading soft switches and VoIP services.

Patton Electronics SN4432/JS/UI Product Overview

Built-in Quality of Service (QoS) features include voice prioritization and traffic management via configurable service-policy profiles. Patton's advanced DownStreamQoS ensures clear, uninterrupted voice—even over best-effort networks such as the Internet. Packet classification using 802.1p, TOS, and DiffServ makes integration with existing managed QoS networks easy. Create custom security profiles for a comprehensive security environment. IPsec in the Patton 4400 series delivers data integrity, authentication, anti-replay and data confidentiality. Firewall capabilities include Access Control Lists (ACLs), IP-address and port filtering, protection against Denial of Service (DoS) attacks, and use of second Ethernet port as DMZ.

Offering easy setup, reliable operation, and third-party interoperability on a proven platform, the SN4400 Series Patton gateway sits at the core of cost-effective business solutions. The investment protection you need for the future is here today.

PATTON SN4432/JS/UI 32FXS Gateway Features & Functions:

  • Two 10/100 Ethernet ports
  • Complete IP access router
  • DHCP Client & server
  • Packet fragmentation
  • Static firewall, NAT, NAPT RFC 1631 access control lists
  • DMZ port
  • Voice priority, DownStreamQoS, Traffic management, shaping and policing
  • IEEE 802.1p, TOS, DiffServ labeling
  • IEEE 802.1Q, VLAN tag insertion/deletion (4096 VLAN IDs, multiple VLAN support
  • Web/HTTP, CLI with local console and remote Telnet access
  • TFTP configuration & firmware loading • SNMP MIB II and product MIB
  • Secure auto-provisioning for both firmware and unit/subscriber configuration
  • Built-in diagnostic tools (trace, debug, call generator)
  • 2-wire Loopstart on 50pin (12 to 24 channels) or 64pin (32 channels) Telco connector
  • Short haul loop 1.1km @3REN • EuroPOTS (ETSI EG201188)
  • Programmable AC impedance, feeding, ring and on-hook voltage
  • Caller-ID FSK and ITU V.23/Bell 202 generation
  • SIPv2 H.323v4 (simultaneously with B2BUA capability)
  • SIP call transfer, redirect
  • DTMF in-band & out-of-band
  • All tones programmable (dial, ringing, busy)
  • CODEC G.711 a-law/mu-law, G.723, G.729ab
  • G.726, G.727. T.38 fax relay
  • G.711 transparent fax and bypass
  • 9-in. rack-mount chassis
