The Sangoma A104D is a quad port T1/E1/J1 PCI card with onboard hardware echo cancellation that supports up to 16.4 Mbps of full duplex data throughput or up to 240 voice calls using up to eight T1, E1, or J1 lines

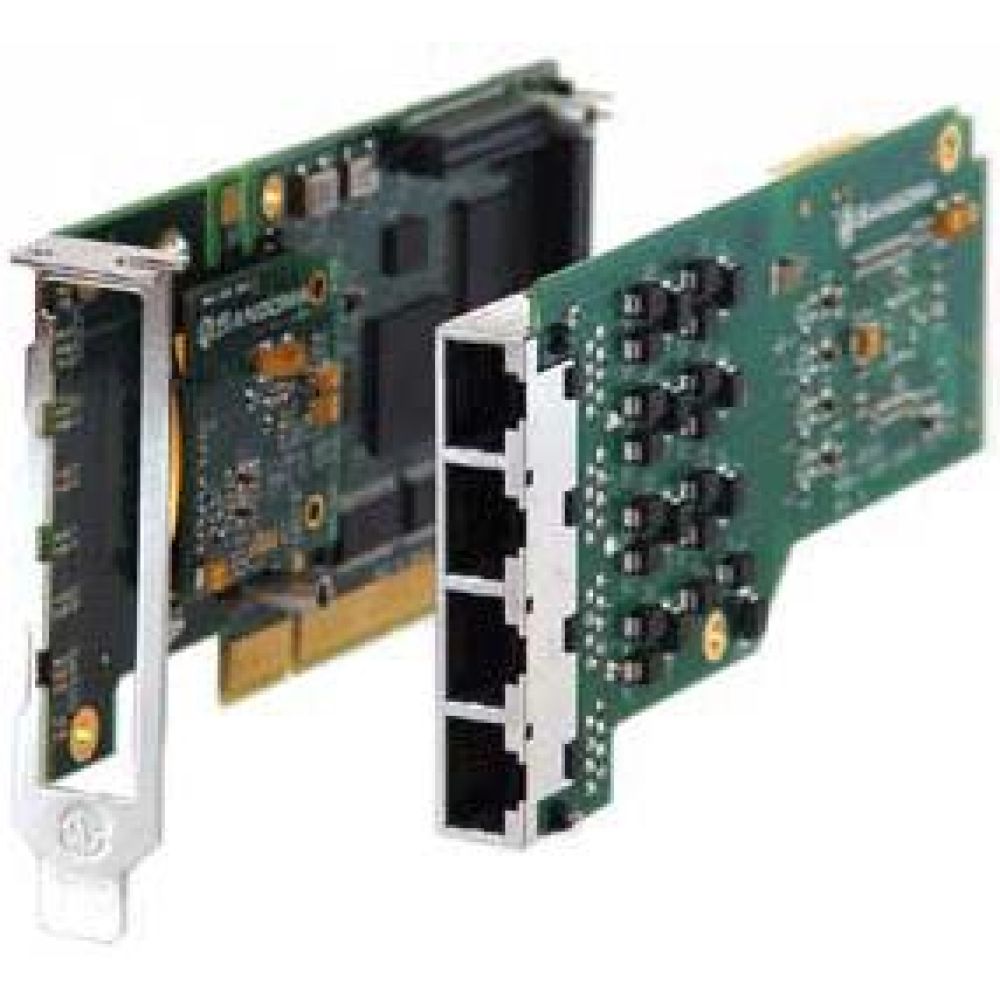

Sangoma A104D Digital Telephony Card

The Sangoma A104D is the, quad port version of Sangoma's range of Advanced, Flexible Telecommunications AFT hardware designed for optimum support of voice and data over T1, E1 and J1.

Sangoma A104D Digital Telephony Card Overview

The Sangoma A104D provides full speed 132 Mbps PCI bus transfer with FPGA and optional DSP based processing to unload the host CPU in demanding environments such as soft PBX/IVR voice applications. Compatible with both the 3.3v and 5v PCI bus, Sangoma A104D cards operate in all commercially available motherboards sharing IRQs properly with themselves and all other PCI compatible devices, so you never have to worry about hardware compatibility issues.

Like all the Sangoma AFT Series, the Sangoma A104D is field upgradeable to take advantage of the hardware and software improvements as they become available.

Sangoma A104D Features and Functions

The new Sangoma A104D has a host of impressive features including:

  • 4 port T1/E1 PCI card compliant for 3.3V/5V compliant
  • telco grade features for the softPBX/switch marketplace
  • full hardware support for 1024 taps 128ms of echo tail across all DS0's
  • on board hardware based DTMF decoding
  • on board hardware based noise reduction and voice enhancement technology
  • full FCC Part 15, FCC Part 68, CE, with other certifications to follow

Didn't find the PCI Card you were looking for?

Check out these other Sangoma Cards:

More Information
SKU 02-102030
Shop By Brand Sangoma
UPC 680031526177
Model A104-DKIT
MSRP $3,156.00
# of Digital Ports 4
Digital Signaling Type T1, E1, J1
# of FXS Ports 0
# of FXO Ports 0
Bus Type PCI
Echo Cancellation Yes
Low Profile No
Voice Signaling Methods CAS, ISDN PRI, PRI, MFC/R2, ATM, PPP, SS7, BSC, HDLC
