Sangoma A200 Remora Series Analog PCI Cards

Sangoma's A200 4 port FXO/FXS card delivers superior audio quality and is expandable to 24 ports in a 2U form factor. As you need them, additional REMORA™ cards can be added to the base four-port A200 card. A single PCI or PCI Express slot hosts connection for up to 24 ports and ensures common synchronous clocking for all channels.

Sangoma Remora A200 Series Analog FXS/FXO Cards

The A200 AFT architecture is shared with Sangoma's A101, A102, A104 and A108 cards ensuring common 3.3 V or 5 V, high performance and universal PCI or PCI Express compatibility.

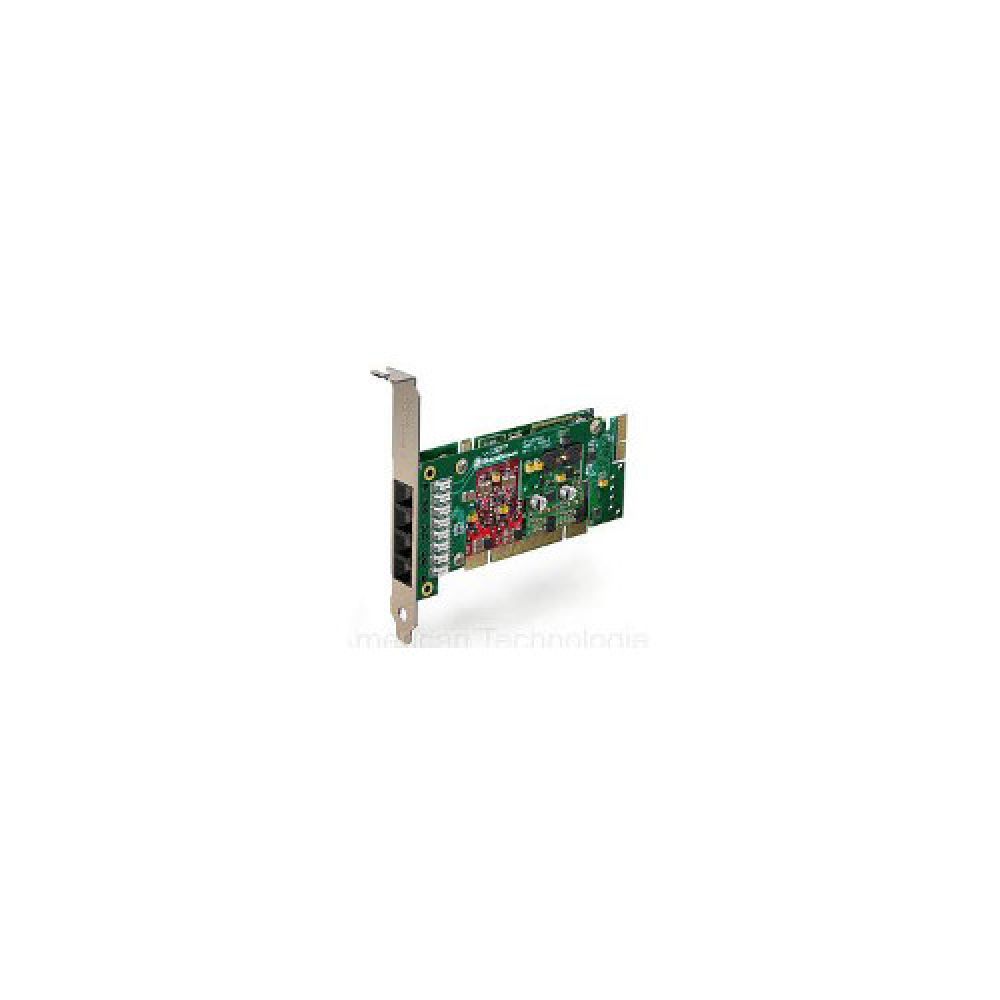

The A200 consists of a Remora™ daughterboard mounted on the AFT PCI card. The Remora card has two sockets each which can accept an FXO-2 or FXS-2 module. Each FXO-2 or FXS-2 module supports two FXO or FXS lines respectively.

Up to five additional Remora™ daughterboards can be mounted in empty slot positions beside the A200 assembly, connected to the A200 by a backplane bus connector.

Like all the Sangoma AFT Series, the A200 and Remora™ system has field upgradeable firmware to take advantage of enhancements as they become available.

Sangoma cards guarantee error-free faxing and click-free audio on analog-digital links.*

*Hardware echo cancellation option required.
