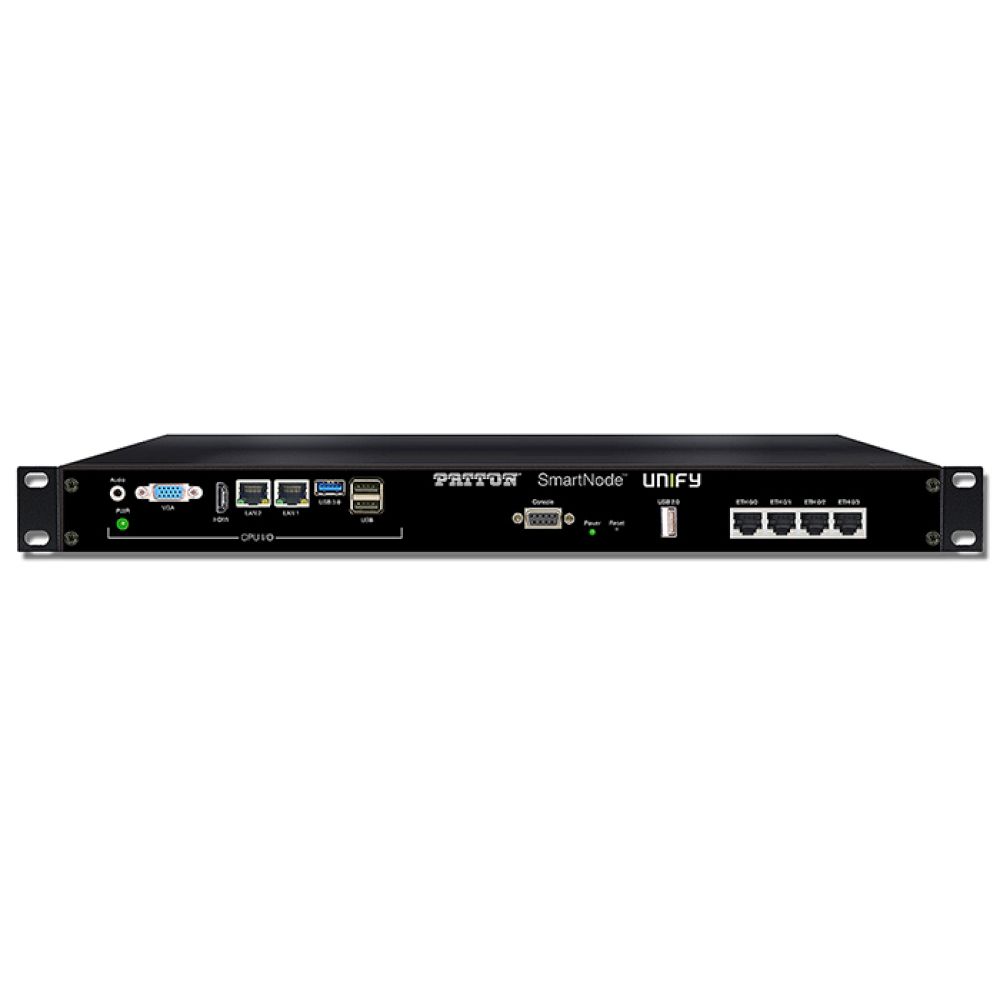

Patton SmartNote OpenScape Business Appliance w/4 T1/E1 PRI ports, 15 VoIP channels/upgradable, 2x GigEthernet and Failover Relay (Discontinued)

The Patton SmartNode OpenScape Business Appliance has been discontinued by the manufacturer. There are no comparable replacements at this time. Please call 800-398-8647 or chat with an expert for a recommendation.

$3,113.00
Availability: In stock
SKU
02-121554
MPN
SN-OSB/4E15VR/EUI
This upgradable SmartNote OpenScape Business Appliance runs on the Trinity Operating System and is equipped with four T1/E1 PRI ports, 15 VoIP channels, 2x GigEthernet, and Failover Relay, making it a reliable, top of the line Unified Communications and Collaboration (UCC) solution for small to medium size businesses. This one-box system provides voice and conference services, voice mail, messaging, mobility, presence functionality and a multi-media contact center, all with quick and easy installation. Made in the USA, this unit offers you an affordable and manageable system with the field-proven interoperability of SmartNote VoIP.

SmartNote OpenScape Business Appliance w/4 T1/E1 PRI ports, 15 VoIP channels/upgradable, 2x GigEthernet and Failover Relay

This upgradable SmartNote OpenScape Business Appliance runs on the Trinity Operating System and is equipped with four T1/E1 PRI ports, 15 VoIP channels, 2x GigEthernet, and Failover Relay, making it a reliable, top of the line Unified Communications and Collaboration (UCC) solution for small to medium size businesses. This one-box system provides voice and conference services, voice mail, messaging, mobility, presence functionality and a multi-media contact center, all with quick and easy installation. Made in the USA, this unit offers you an affordable and manageable system with the field-proven interoperability of SmartNote VoIP.

SmartNote OpenScape Business Appliance w/4 T1/E1 PRI ports, 15 VoIP channels/upgradable, 2x GigEthernet and Failover Relay Overview

The SmartNote OpenScape Business Appliance allows businesses to maximize their budgets by reducing the operational costs of calls, mobile roaming charges and conferencing costs. This unit also enables powerful desktop UC functionality, as well as high mobility so that coworkers can enjoy safe and effective communication on the go, regardless of location, device type or network connection. Furthermore, the SmartNote OpenSource Business Appliance helps improve customer service quality with an integrated contact center with a rich menu of customer engagement options.

This unit allows you to transition to IP telephony at your own pace. This appliance is fully compatible with OpenStage IP Phones and has a built-in SmartNote VoIP gateway so that you are able to use the legacy telephony devices and fax devices you may already own (TDM fax devices, analog POTS and digital ISDN or DECT phones).

The SmartNote OpenScape Business Appliance has a Trinity Operating System, four T1/E1 PRI ports, 2x GigEthernet, and 15 VoIP channels that can be upgraded to up to 60 channels. This VoIP gateway is IPv6 ready and also features Failover Relay for maximun reliability. This unit boasts a High Precision Clock (5ppm) and comes with an external 100-240V AC EUI Power. This one-box solution is perfect for businesses looking to boost their productivity levels by benefiting from comprehensive Unified Communications and Collaboration (UCC) features.

Take your business to the next level with the SmartNode OpenScape Business Appliance for up to 1,000 users. This integrated business server, with the OpenScape Business S software brings greater flexibility, mobility, and workforce productivity to small and medium business.  (Ask for details)

SmartNote OpenScape Business Appliance w/4 T1/E1 PRI ports, 15 VoIP channels/upgradable, 2x GigEthernet and Failover Relay Features and Specifications

  • Quick, easy deployment: one-box appliance is fast and simple to install

  • Certified and tested for many Internet Telephony Service Providers (ITSP) globally

  • Integrated IP capability for users and (ITSP) combined with connectivity for FXS, FXO, BRI, and PRI.

  • Rich security features such as SRTP and TLS secure your communications.

  • Failover to alternative service provider trunk link or 3G/4G via USB back-up link will keep you connected 24/365

  • Running on industry standard hardware with Linux operating system

Capacity

  • 64 calls with Transcoding

  • 128 calls with RTP Relay

  • 20 cps

  • 100 CAPS

Gateway Capacity

  • Up to 120 (PRI), 16 (BRI), 8 (FXS) simultaneous VoIP or T.38 fax calls (depending on the model).

BRI Voice Connectivity

  • 2/4/8 BRI So ports, RJ-45

  • NT/TE configurable per port

  • Built-in line power on each port (total 4W)

  • DSS1, Q.921, Q.931. NTT-64

  • Point-point and point-to-multipoint

  • Optional QSIG support*

FXS/FXO Voice Connectivity

  • Up to 4 FXS and FXO ports

  • 2-wire Loopstart on RJ-11/12

  • Short haul loop 1.1km @3REN

  • EuroPOTS (ETSI EG201188)

  • Programmable AC impedance, feeding, ring and on-hook voltage

  • Caller-ID FSK and ITUV.23/Bell 202 generation

  • FSK & stuttering dial tone MWI

PRI Voice Connectivity

  • 1 or 4 T1/E1 PRI port(s) (NT/TE)

  • Signaling support (ISDN DSS-1, NI-2, Q.SIG, CAS Robbed bit loop and ground start, E&M, immediate, wink, double wink)

  • ISDN AOC/ECT

  • ISDN speech, audio & data (Fax Gr 4, UDI 64, RDI64)

  • ISDN supplementary services

  • CAS protocols: RBS (Loop start, ground start, E&M wink, intermediate, double-wink) and R2/MFC-R2 (Q.400–Q.490 and Configurable country profiles)

LAN/WAN Connectivity

  • 2 x 10/100/1000 TX Ethernet ports

  • 4 x 10/100Base-T Ethernet ports (depending on the model)

  • Auto-MDI-X • DHCP Client

  • PPPoE Client (multi-session)

  • IP Multi-Netting access control lists

  • DMZ port

Voice Processing

  • Codec G.711 a-law/mu-law, G.723, G.729ab, G.726, G727, T.38 fax relay (9.6 k, 14.4 k)

  • G.711 transparent fax and bypass

  • Transcoding for up to 12 channels

Call Routing and Services

  • Regular expression call routing and manipulation

  • Number blocking

  • Short-dialing

  • Digit collection, distribution and hunt groups

IP Quality of Service

  • Voice priority

  • Traffic management

  • IEEE 802.1p, TOS, DiffServ labeling

  • IEEE 802.1Q, VLAN tag insertion/deletion 4,096

Management

  • Web/HTTP, CLI with local console & remote Telnet access

  • TFTP configuration & firmware loading

  • SNMP MIB II and product MIB

  • Secure auto provisioning for firmware & unit/subscriber configuration

  • Built-in diagnostic tools (trace, debug, call generator)

Processor

  • Intel Celeron J1900 Quad Core 2.0 GHz Processor

Memory

  • 4GB of DDR3L RAM

  • 250GB hard drive

Ethernet

  • 2 10/100/1000 Ethernet Ports

External Power Supply

  • 12 VDC, 8.5 A (102 W max)

Operating Environment

  • Operating Temperature: 32 to 104° F (0 to 40°C)

  • Operating Humidity: up to 90%, non-condensing

Dimensions

  • 19W x 1.7H x 12D in. (48.3W x 4.4H x 30.5L cm)

  • Rack mountable chassis

Compliance

  • EMC: EN55022 and EN5502

  • Safety: EN 60950

  • CE

  • FCC Part 15 Class A; Part 68; CS-03

Why SmartNode™?

  • Patton Quality

  • Made in the USA

  • Unrivaled Customer Support

  • FREE Support and Upgrades
