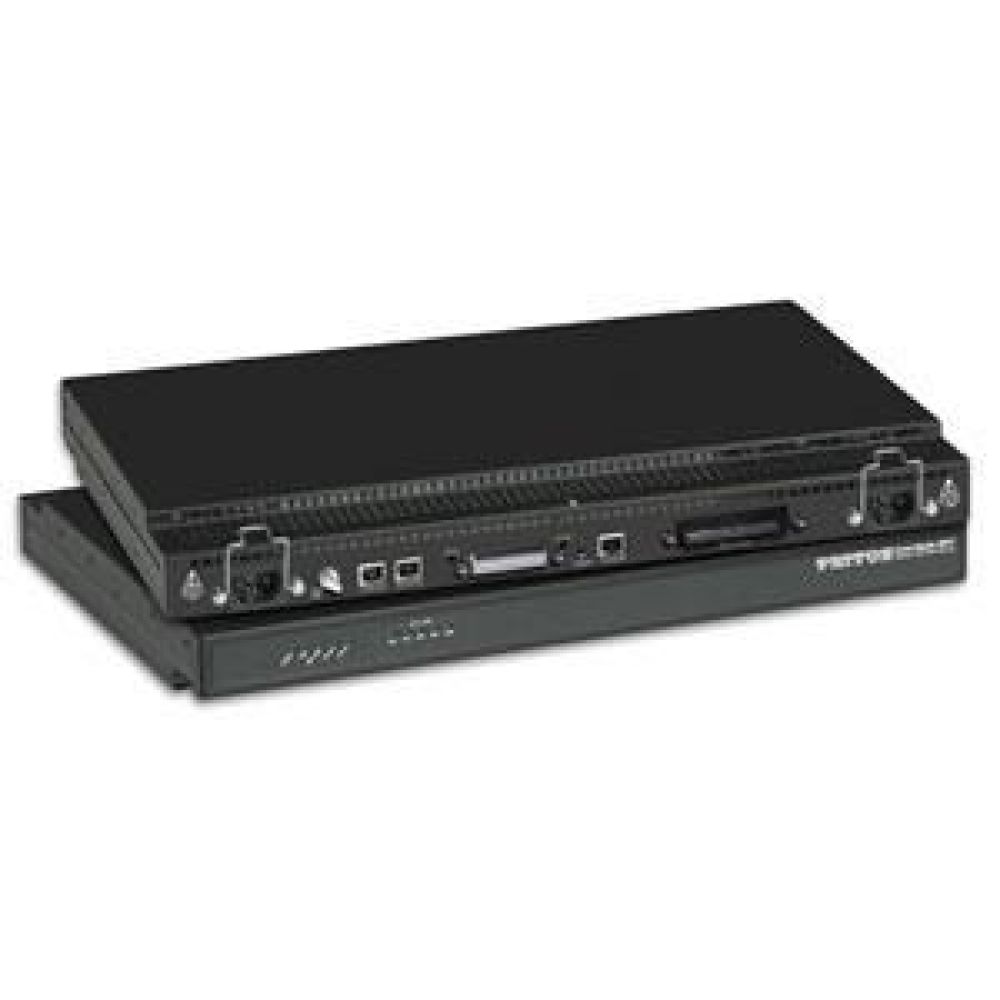

The Patton SmartNode 4932 VoIP Gateway is a 32 FXS port Gateway with redundant UI power. Read More
Product Details
Manufacturer:
Patton
Model:
SN 4932/JS/RUI
SKU:
02-101568
Warranty:
1 Year
MSRP Price:
$2,541.00

Patton Smartnode 4932 FXS Gateway Router with UI Power

Patton SN4932/JS/RUI . Patton's SmartNode 4900 Series Ip Channel Banks is the perfect business solution for applications requiring 12 to 32 concurrent analog voice/fax calls. The Patton IpChannel Bank transforms any PBX system, analog call-center application, or ISP MDU service into a state-of-the-art packet-voice system without requiring costly equipment replacement or upgrades.

Patton SN4932/JS/RUI 32 FXS Overview:

Built-in Quality of Service QoS features include voice prioritization and traffic management via configurable service-policy profiles. Patton's advanced DownStreamQoS ensures clear, uninterrupted voice--even over best-effort networks such as the Internet. Packet classification using 802.1p, TOS, and DiffServ makes integration with existing managed QoS networks easy. Create custom security profiles for a comprehensive security environment. IPSec in the SN4900 Series delivers data integrity, authentication, anti-replay and data confidentiality. Firewall capabilities include Access Control Lists ACLs, IP-address and port filtering, protection against Denial of Service DoS attacks, and use of second Ethernet port as DMZ.

Patton SN4932/JS/RUI 32 FXS VoIP Gateway Features & Functions:

  • Multi-port VoIP media gateway and routing
  • DTMF relay, Caller-ID, Hold, Transfer etc.
  • Advanced adaptive traffic management for maximum voice quality
  • Voice prioritization and DownStreamQoS for bi-directional traffic control
  • IPv4, RIPv2, ICMP, IGMP, NAT/PAT, Firewall, DHCP, DynDNS, IPSec VPN optional
  • Optional WAN for one-box connection to the network
  • Built-in Web based management, SNMP, Command Line Interface and Auto-Provisioning

Manufacturer
Patton
Model
SN4932/JS/RUI
# of FXS Ports
32
Connection Types
RJ-21 50 Pin Amphenol, **Amphenol Cable Required**
Amphenol Cable Included
No
# of Ethernet Ports
2
Protocols Supported
SIP, H.323
Echo Cancellation
Yes
Provisioning Options
Auto Provisioning, Console CLI, HTTP, Telnet SSH, TFTP, Web GUI
Mounting Option
Rackmount
Patton SN4932/JS/RUI Gateway

Darren Hartman

Direct: 866-675-8461
Blog

Why Pay $3,119.00 for the Patton SN4932/JS/RUI?

  • Secure Toll-Quality VoIP—DownStreamQoS and Voice-over-VPN with adaptive traffic management and shaping for maximum voice quality and secure voice communication.

  • Full SIP and T.38 support—Supports the complete range of industry standard VoIP: SIP, H.323, T.38 fax, fax and modem bypass, DTMF relay. Codecs G.729, G.723 etc.

  • Complete Access Routing—Two 10/100 Ethernet ports with auto MDI-X. Access router with NAT, Firewall, PPPoE, DHCP, DynDNS, multiple VLANs & VPN with IPSec
