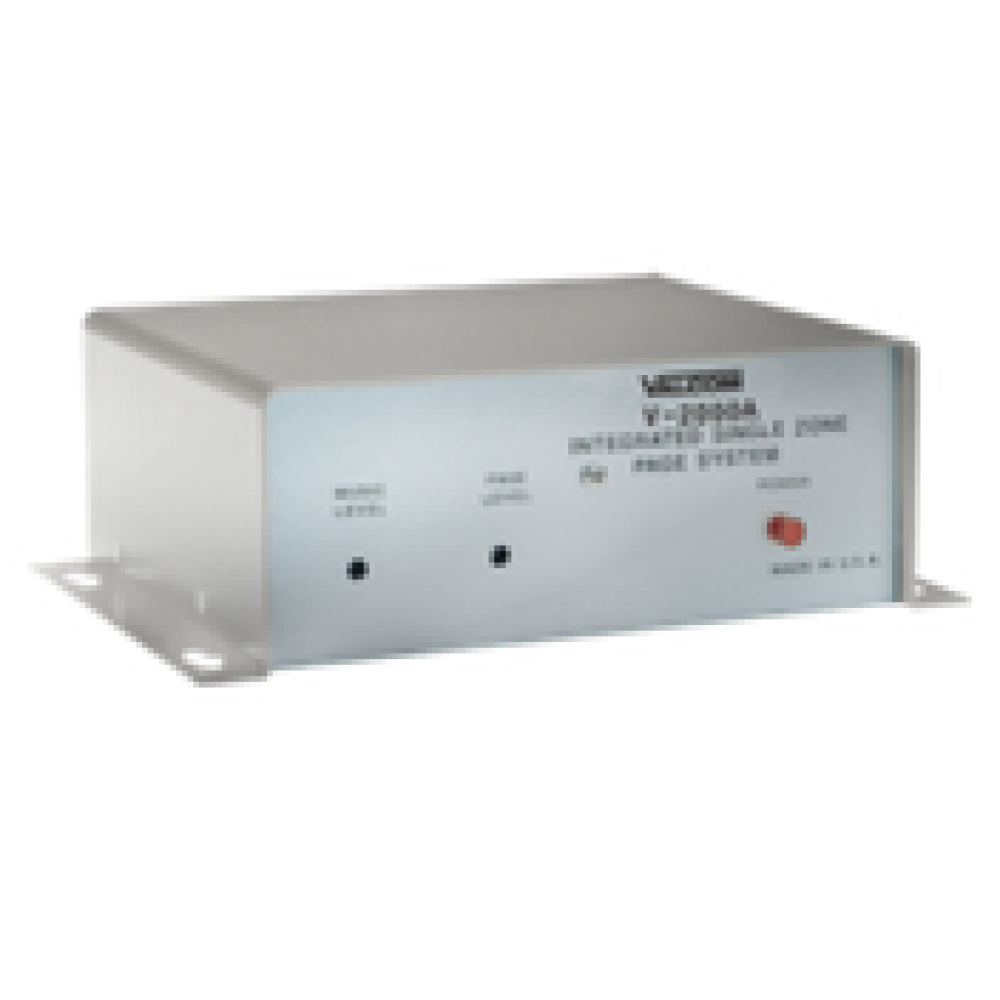

Valcom V-2000A Integrated Single Zone Page System
The V-2000A is an integrated single zone page control unit and supplies telephone access to a single zone.
Valcom V-2000A Integrated Single Zone Page System Overview
The Valcom V-2000A Integrated Single Zone Page System should be wall or shelf mounted. The V-2000A provides a page input as well as a background music input. The unit also contains voice activated switching which allows you to automatically cut off music duing a voice page.
When connected to a telephone system, the V-2000A has the ability to provide loop current to the system for access. When connected to a telephone [age port, the V-200A, a "dry" tip and ring connection must be provided. Screw terminals will allow you to turn loops currect on or off to the tip and ring connections.
Input/Output
- Input Impedence : 600 ohms
- Music Source Impedence : 9 to 600 ohms
- Music Input Level : -10 dBm nominal
- Voice Switch Sensitivitiy : -21 dBm
- Output Impedence : 8 ohms
- Output Level : -10 dBm nominal
- DC Output : -24 Vdc @ 600 mA
Valcom V-2000A Integrated Single Zone Page System Features
- Background music input with voice operated mute
- Loops start trunk port and page port access
- Provides external power for one-way amplified speakers
- UL listed
- Supplies 12 Valcom power units for powering Valcom one-way amplified speakers
- AC powered
- AC input fused at 0.5 Aamp
- May be use with 25 or 70 Volt amplifiers
- PABX loop start trunk port access
- 1A2 Key Systems (400 type lin card required)
