Patton SmartNode ISDN BRI PSTN VoIP Gateway SN4120/2BIS4V/EUI (Discontinued)

The Patton ISDN BRI PSTN VoIP Gateway has been discontinued by the manufacturer. There are no comparable replacements at this time. Please call 800-398-8647 or chat with an expert for a recommendation.

Availability: Out of stock
SKU
02-123070
MPN
SN4120/2BIS4V/EUI-DIS
SmartNode ISDN BRI PSTN VoIP Gateway, 2 BRI/So TE, 4 voice/fax calls, 1x 10/100 Ethernet, external UI power (100–240 VAC), 1-year warranty.

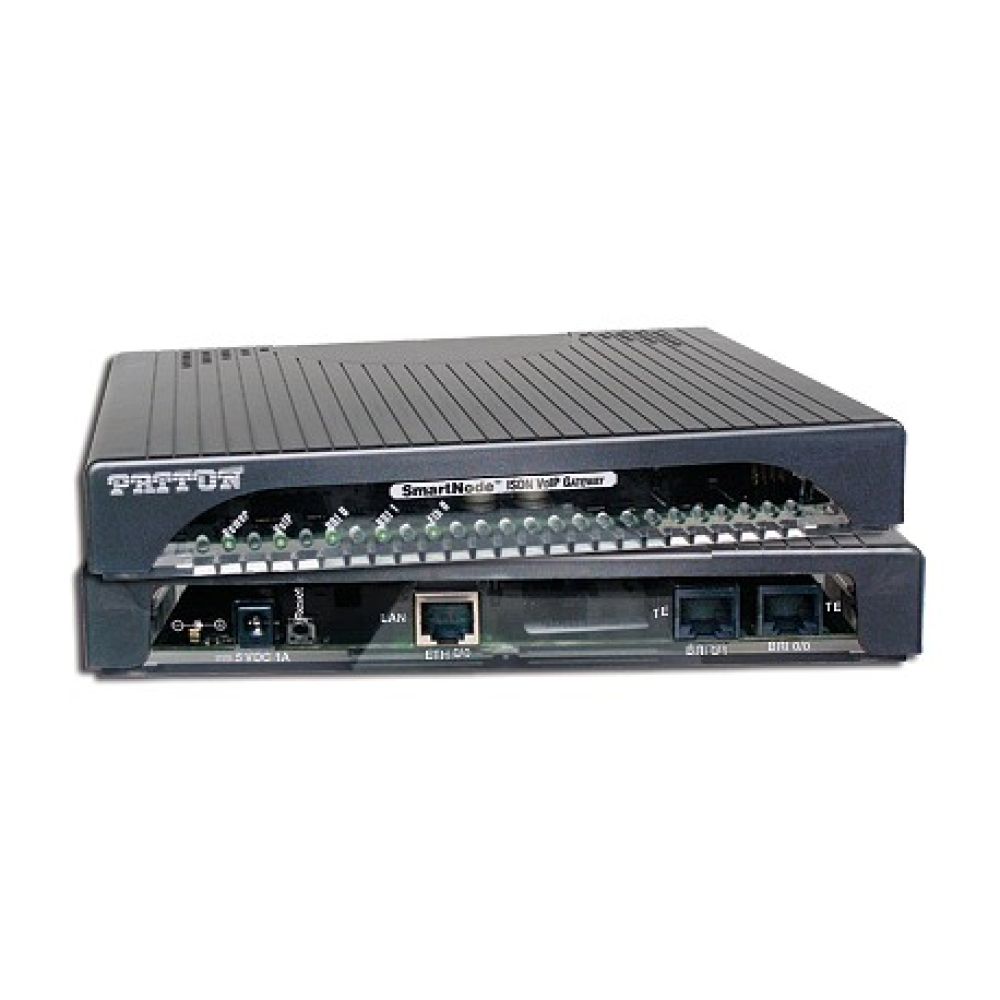

Patton Electronics SmartNode 4120

The SmartNode™ 4120 Gateway converts up to four simultaneous phone or T.38 fax calls from SIP to ISDN BRI. It is a compact reliable standalone VoIP gateway for IP-based voice systems that delivers ISDN performance and quality.

For system integrators looking to connect a VoIP or Unified Communication solution to public or private ISDN lines, the SmartNode 4120 provides unparalleled ISDN to IP feature preservation. Like any SmartNode the 4120 provides advanced ISDN functionality such as Explicit Call Transfer (ECT) support and Advice of Charge (AOC) over SIP. Patton CPEs are interoperable with most IP PBX and Unified Communication vendors such as Asterisk, 3CX, Elastix, Microsoft, IBM, Swyx, SNOM One and many others.

Compared to PC-based solutions that combine IP PBX and a PCI BRI cards, the SmartNode has several advantages, including: installation without additional drivers or software, operation without ventilation or hard disk, scalable without limitation, and service integration without downtime. SmartNode gateways can be combined in a cluster for simple and flexible redundancy solutions not available with PCI BRI cards. System administrators don't have to learn ISDN as industry standard protocols like SIP do the job of connecting the PSTN to your VoIP system.

Features & Benefits

  • Up to Four Simultaneous SIP or T.38 Calls—With 1/2 ISDN So BRI ports and one 10/100Base-TX Ethernet port.
  • Proven Interoperability— Standard ISDN compliant and Interoperable with a wide range of IP-PBX and Unified Communication Systems.
  • Comprehensive Signaling & Protocol Support—Supports SIP, H.323, ISDN telephony plus T.38 and SuperG3 FAX over TDM/PSTN and IP/Ethernet services simultaneously.
  • Transparent ISDN Features—Complex number manipulation and mapping for seamless integration with existing infrastructures, CLIP, CLIR, AOC, PARE, hold, transfer and much more.
  • Management & Provisioning—Built-in Web-based management, SNMP, command line interface (CLI) and auto-provisioning for automated configuration distribution and software upgrades. RADIUS for call detail records (CDR) and user authentication.
  • Supported by SmartNode™ Redirection Service: A free service enabling zero-touch mass deployments for Service Providers and Distributors with auto-provisioning servers
More Information
SKU 02-123070
Shop By Brand Patton
Model SN4120/2BIS4V/EUI-DIS
MPN SN4120/2BIS4V/EUI-DIS
MSRP $402.19
Digital Signaling Type BRI
Ethernet Port Speeds 10/100
Provisioning Options HTTP, SNMP, TFTP
pdf
(Size: 2.3 MB)
Patton SN4120 Data Sheet
