Patton 4022 SmartLink 2 FXS VoIP GW-Router (DISCONTINUED

The Patton 4022 SmartLink 2 FXS VoIP GW-Router has been discontinued by the manufacturer. For a comparable product please see the Patton SmartNode SN200 Gateway (SN200/2JS2V/EUI)

Availability: Out of stock
The Patton Smartlink 4022 VoIP SOHO Router connects your LAN, standard analog phones, and fax to any IP network.

Patton SmartLink 4022
Analog VoIP SoHo Router
SL4022 Dual FXS Dual Ethernet No FXO

The Patton SmartLink 4022 VoIP SoHo router connects your LAN, standard analog phones, and fax to any IP network. This full-featured IP router includes VPN/Security and Quality of Service for converged low-cost sales-office/telecommuter voice data communications.

Patton SL4022/EUI Overview

The SmartLink VoIP SoHo Router provides transparent connectivity for analog phones and faxes to the world of Internet voice. Connecting to any analog phone, fax or PBX, the SmartLink product is an effective and flexible solution for small offices and telecommuters to access Internet-based telephone services and corporate intranet systems across established LAN and Internet connections like xDSL and cable modems.

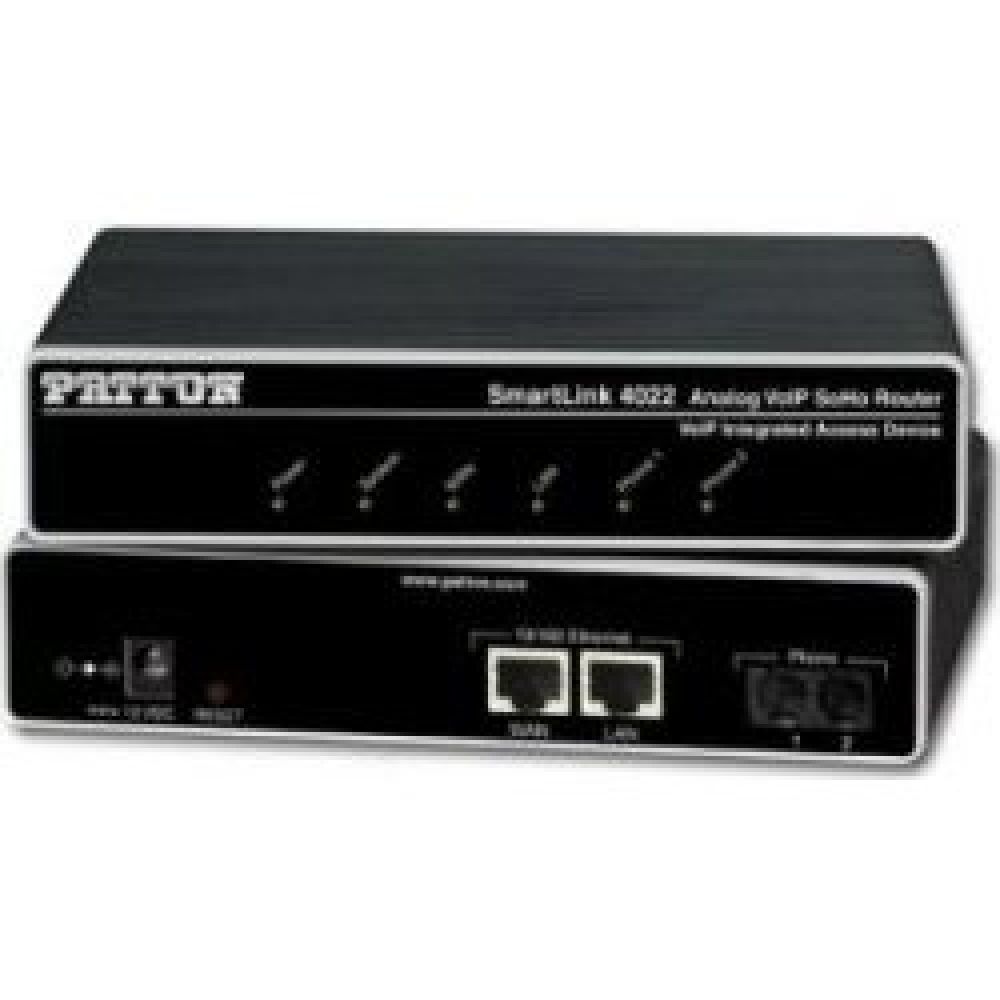

The SmartLink Model 4022 provides two RJ-45 Ethernet ports and two FXS RJ-11 analog phone ports. Front panel LEDs quickly show at-a-glance the status of the system, LAN, WAN, and phone ports.

A full suite of IP features DHCP, NAT/PAT, NTP and VPN are available to LAN devices attached downstream. VLAN tagging and prioritization enables voice traffic to be handled before data traffic. Support for PPPoE and IPSEC tunneling simplifies extending corporate intranet services to remote teleworkers.

The web interface offers two levels of configuration access for the network operator and end user. The friendly web interface and product labeling Phone, LAN, WAN etc. to help ensure a trouble-free installation for the end user. Configuration and firmware can be downloaded from a TFTP server.

The SmartLink is SIP standard compliant, so it can be used with most SIP-based telephony services. Analog phones attached to the SmartLink can use such advanced voice calling features as call forwarding, caller ID, 3-way calling, call holding, call retrieval and call transfer.

Patton SL4022/EUI Overview

Voice Connectivity
  • 2-wire Loopstart, RJ-11/12
  • Short haul loop 1.1 km @3REN?
  • Caller-ID Type-1/2 FSK and ITU V.23/Bell 202 generation
  • 2 10/100 Full Duplex/Autosensing Ethernet RJ-45
Voice Processing signalling dependent
  • SIP
  • MGCP
  • Packet Cable NCS 1.0
  • IETF MGCP 1.0
  • Voice codes
  • G.711 A-Law/ and 956;-Law 64 kbps
  • G.726 ADPCM 40, 32, 24, 16kbps
  • G.723.1 5.3 or 6.3 kbps
  • G.729ab 8 kbps
  • G.168 echo cancellation
  • 4 parallel voice connections
  • DTMF detection and generation
  • Carrier tone detection and generation
  • Silence suppression and comfort noise
  • Configurable dejitter buffer
  • DTFM in-band and out-of-band
  • Configurable transmit packet length
  • RTP/RTCP RFC 1889
  • STUN

More Information
SKU 02-101574
Shop By Brand Patton
Model SL4022/EUI-DIS
MSRP $116.42
# of FXS Ports 2
# of FXO Ports 0
Connection Types RJ-11, **Amphenol Cable Required**
Amphenol Cable Included No
# of Ethernet Ports 2
Protocols Supported SIP, MGCP
Echo Cancellation Yes
Provisioning Options Auto Provisioning, HTTP, TFTP, Web GUI
Mounting Option Rackmount
