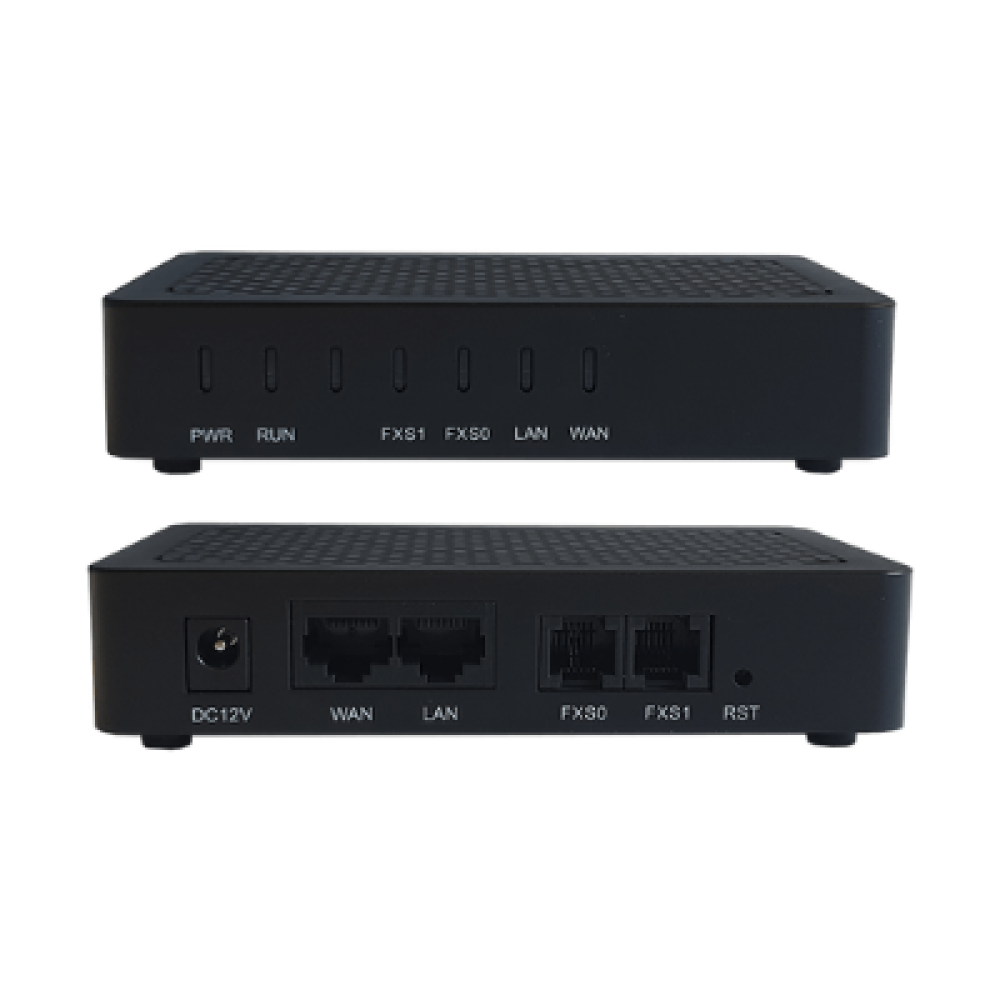

Xorcom GW0002 2-FXS Analog VoIP Gateway

The Xorcom GW0002 2-FXS Analog VoIP Gateway provides the connection between IP telephony networks and legacy telephony (POTS). The GW0002 also helps to connect fax machines and PBX systems. This appliance supplies 1 or 2 FXS ports, fax over IP and a built-in high-speed NAT router.

Xorcom GW0002 2-FXS Analog VoIP Gateway Overview

The GW0002 is suitable for applications such as SOHO environments, small enterprises and for personal use. It features automatic provisioning and centralized management system for simple maintenance and deployment.

Xorcom GW0002 Key Features:

• Cost-effective ATA with 1 or 2 FXS port(s)
• Fax over IP (T.38 and Pass-Through)
• Support IPv4 and IPv6
• TR069 and SNMP
• Elastix and Broadsoft Certification
• Multiple codecs: G.711A/U,G.723.1,G.729A/B, G.726
• Fully compatible with leading IMS/NGN, SIP-based IP telephony system

FXS Features:

• Connector: RJ11
• Dial Mode: DTMF and Pulse
• Pulse: 10 and 20 PPS
• Caller ID: DTMF/FSK CLI Presentation
• Max Cable Length: 3Km
• Reversed Polarity
• Programmable Call Progress Tone
