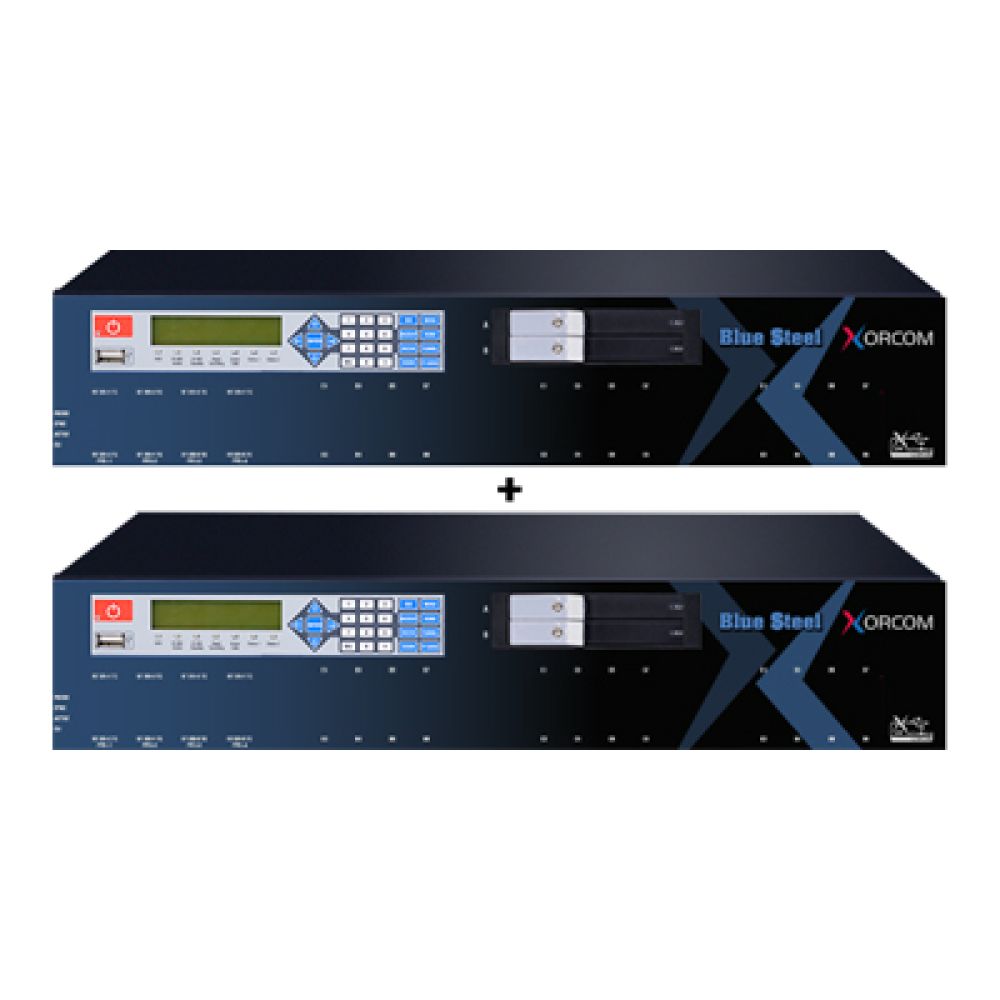

Xorcom Blue Steel IP PBX Phone System Failover Twinstar Plus CXTS3000

Need VoIP Phone Service?

Availability: In stock

The TwinStar Plus CXTS3000 is comprised of two Blue Steel 3000 (CXT3000) module-less VoIP servers. This enhanced configuration is a heavy-duty, stand-alone, pre-configured, out-of-the-box IP-PBX featuring Xorcom’s CompletePBX distribution, hot-swappable disk drives, and two built-in redundant power supplies supporting up to four Astribank units. Read More
$8,750.00
keyboard_arrow_down
Options

See all reviews

Product Details
Manufacturer:
Xorcom
Model:
CXTS3000
SKU:
02-124017
MSRP Price:
$9,150.00
% Off:
4%
Tech Specs
Manufacturer:
Xorcom
Model:
CXTS3000

Xorcom Blue Steel IP PBX Phone System Failover Twinstar Plus CXTS3000

The TwinStar Plus CXTS3000 is comprised of two Blue Steel 3000 (CXT3000) module-less VoIP servers. This enhanced configuration is a heavy-duty, stand-alone, pre-configured, out-of-the-box IP-PBX featuring Xorcom’s CompletePBX distribution, hot-swappable disk drives, and two built-in redundant power supplies supporting up to four Astribank units.

Xorcom Blue Steel  CXTS3000 Overview

Support for digital PRI and BRI ISDN and PSTN/analog phone ports can be provided by connecting up to 24 external Astribank units via the USB2 ports, for a total of up to 800 PSTN/analog phones ports, up to 1000 users and up to 550 concurrent calls (SIP only); 480 for PRI / FXS.

A multi-function LCD (Liquid Crystal Display) on the Blue Steel CXTS3000 allows the system administrator to perform several of the most common functions directly on the front panel of the IP-PBX without having to attach a keyboard and monitor. The touch panel uses a text-based menu tree to facilitate monitoring, maintenance, and troubleshooting of the entire telephony system.

Xorcom Blue Steel  CXTS3000 Features and Specifications

  • Up to 1000 users
  • Call capacity
    • Maximum number of concurrent calls: 880 (SIP only); 750 (PRI + FXS)
  • Built-in redundancy
    • Two hot-swappable, 24×7 server-grade HDDs (lockable)
    • Two internal, redundant, hot-swappable power supplies
    • Built-in power for up to four Astribanks
  • Telephony
    • Various combinations of FXS, FXO, BRI ISDN and PRI, CAS or R2 ports supported via external Astribanks
    • Supports SIP and IAX2 phones and trunks
    • Up to 8 BRI ISDN ports
    • Up to 4 PRI (E1/T1), T1 CAS, or R2 (E1) ports
  • Supports up to 20 external Astribank USB channel banks
  • Supports auxiliary appliances (door locks, alarm systems) (available for models that feature I/O ports)
  • Intuitive Web-based user interface

Hardware:

  • Processor: Intel Xeon E3-1225V2 8M cache (3.20GHz)
  • RAM: 8 GB
  • Hard disk: Two hot-swappable 1TB 2.5” or SSD
  • RAID1: Dual hard-drive redundancy for increased system reliability
  • IPMI: Intelligent Platform Management Interface (IPMI) v.2
  • USB: 2 external USB 2.0
  • Fan: 3 redundant fans
  • Hardware Echo Cancellation module: Voice enhancement & echo cancellation (optional)
  • I/O Ports: Input/Output ports for Asterisk peripheral device support (optional)

Software:

  • Software: CompletePBX v. 5 free upgrade under warranty
