Xorcom XR3000 Enterprise IP PBX Configurator
The Xorcom XR3000 is an Elastix™ Asterisk®-based IP PBX system supporting various combinations of telephony ports. The standalone Xorcom XR3000 may be equipped with up to 32 analog FXS/FXO ports, up to 8 BRI ISDN ports, and up to 4 E1/T1 PRI, 4 T1 CAS, or 4 E1 R2 ports in a single chassis.
Additional PSTN/analog phone ports can be provided by connecting external Astribank units via the USB2 ports, for a total of up to 672 PSTN/analog phones ports, up to 1000 users and up to 300 concurrent calls.
Use the drop down options above to choose the exact configuration of the Xorcom XR3000 you would like.

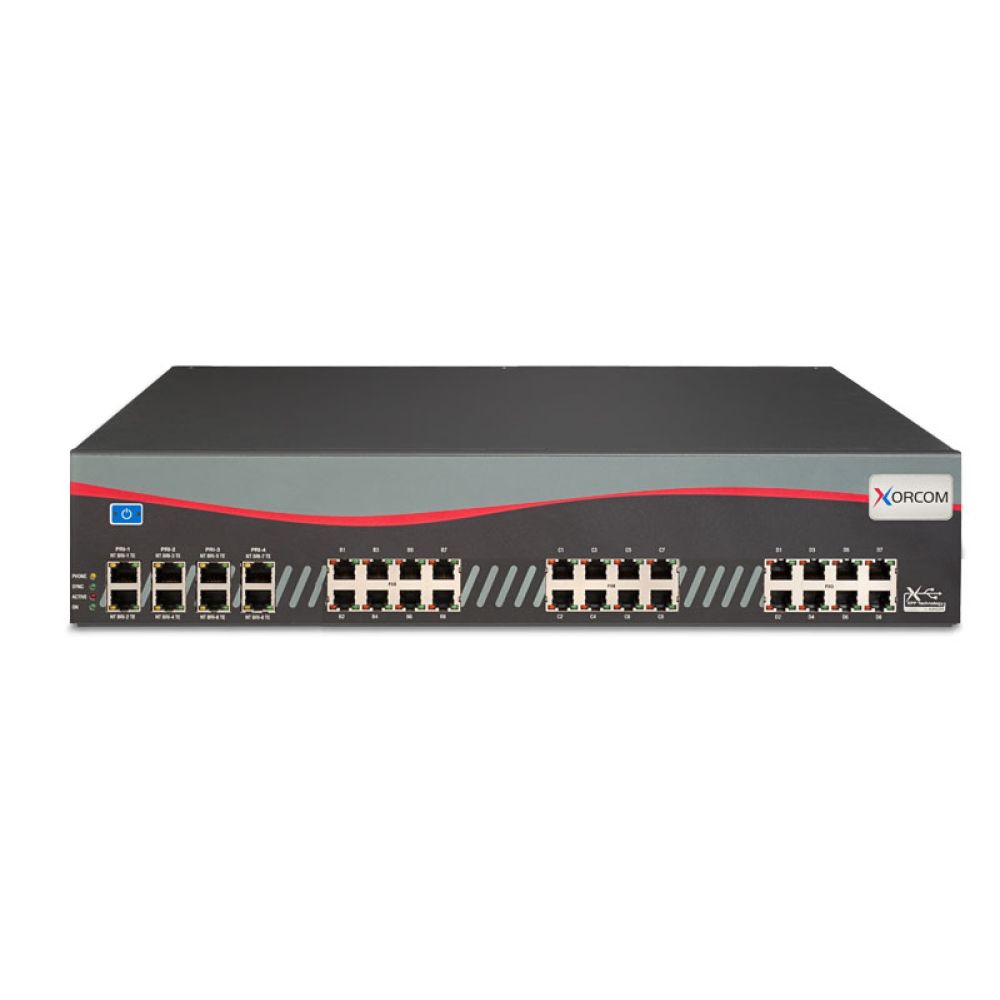

Xorcom XR3000 Overview
Multiple Xorcom Astribank units may be connected to a single XR3000 server using different USB 2.0 ports, a USB 2.0 hub or USB 2.0 PCI card. The XR3000 can support a second high-speed Ethernet port (factory-installed option) to allow separation of IP voice and data traffic for improved voice quality and increased throughput.
- - Intel CPU G850
- - 2 GB RAM
- - 250GB HDD (500GB Upgrade and Raid1 Optional)
- - 4 USB 2.0 ports
- - 10/100/1000 ethernet port (2nd 10/100/1000 port optional)
- - Internal 110/220 auto switching power supply
- - 2U Standard rack mountable chassis
- - Input/Output ports for Asterisk peripheral device support (specific models only)
- - Elastix v2.2x
- - Asterisk Version 1.8x
- - Linux version CentOS 5.x
- - GUI based on FreePBX
- - Rapid Tunneling™ utility provides remote access for product support purposes
Xorcom XR3000 Features:
Supports SIP and IAX2 phones and trunks
Supports Up to 20 external Astribank USB channel banks
Up to 300 concurrent calls
Supports auxiliary appliances (door locks, alarm systems). Available for models that feature I/O ports.
FreePBX™ - Easy-to-use Web interface for Asterisk and network setup
User friendly Web Interface
Interface in Different Languages
CDR (Call Details Record) via Web access
Voicemail to Email
IVR Menu System
Advanced Dialing Rules
Paging and Intercom
Web Access to Voicemail
Admin Status Screen
Package Manager (for easy updates)
Network Settings Tool
Phone Provisioning Tool
Echo Cancellation - OSLEC (Open Source Line Echo Cancellation)
Advanced support and maintenance features:
Rapid Tunneling™ - opens a secured direct SSH tunneling to our support engineers upon user's request. Get our direct support wherever you are, behind firewalls and NATs.
Configuration export / import
