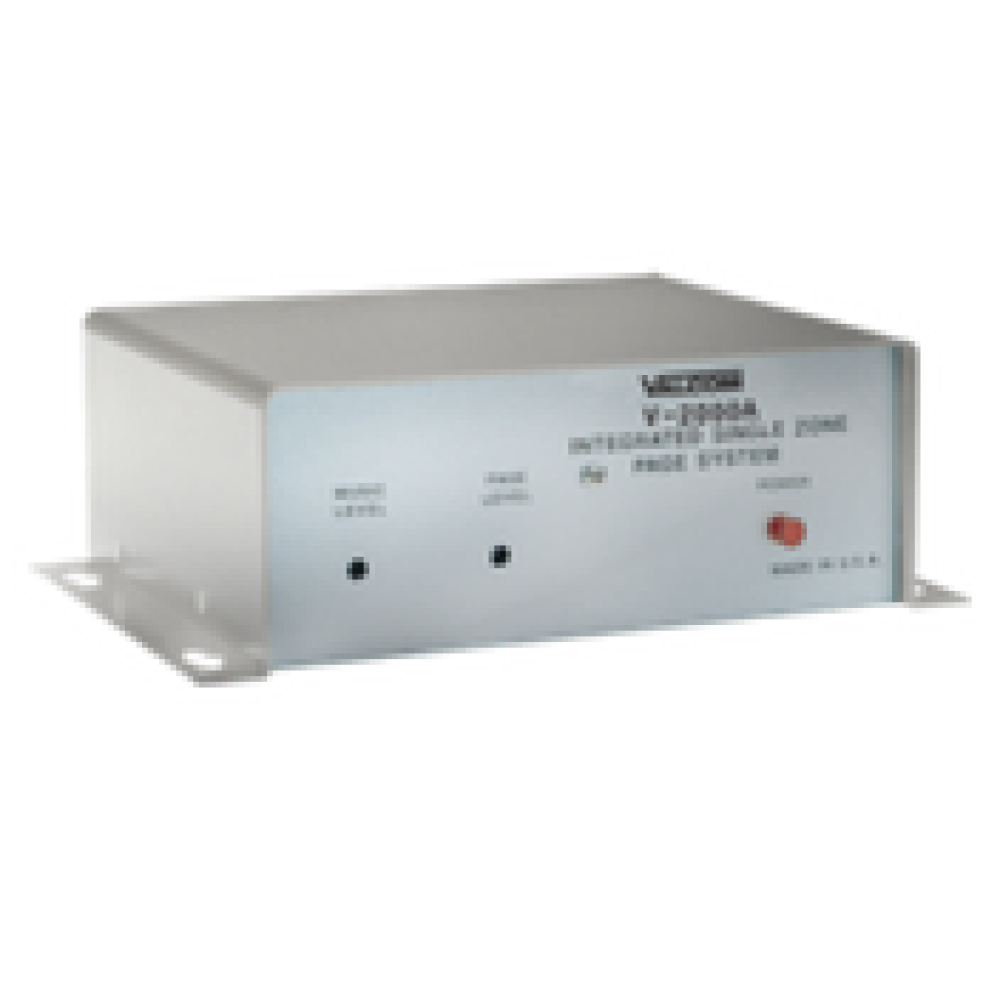

Valcom V-2000A Integrated Single Zone Page System

Valcom V-2000A Integrated Single Zone Page System

The V-2000A is an integrated single zone page control unit and supplies telephone access to a single zone.

Valcom V-2000A Integrated Single Zone Page System Overview

The Valcom V-2000A Integrated Single Zone Page System should be wall or shelf mounted. The V-2000A provides a page input as well as a background music input. The unit also contains voice activated switching which allows you to automatically cut off music duing a voice page.

When connected to a telephone system, the V-2000A has the ability to provide loop current to the system for access. When connected to a telephone [age port, the V-200A, a "dry" tip and ring connection must be provided. Screw terminals will allow you to turn loops currect on or off to the tip and ring connections.

Input/Output

• Input Impedence : 600 ohms
• Music Source Impedence : 9 to 600 ohms
• Music Input Level : -10 dBm nominal
• Voice Switch Sensitivitiy : -21 dBm
• Output Impedence : 8 ohms
• Output Level : -10 dBm nominal
• DC Output : -24 Vdc @ 600 mA

Valcom V-2000A Integrated Single Zone Page System Features

• Background music input with voice operated mute
• Loops start trunk port and page port access
• Provides external power for one-way amplified speakers
• UL listed
• Supplies 12 Valcom power units for powering Valcom one-way amplified speakers
• AC powered
• AC input fused at 0.5 Aamp
• May be use with 25 or 70 Volt amplifiers
• PABX loop start trunk port access
• 1A2 Key Systems (400 type lin card required)
