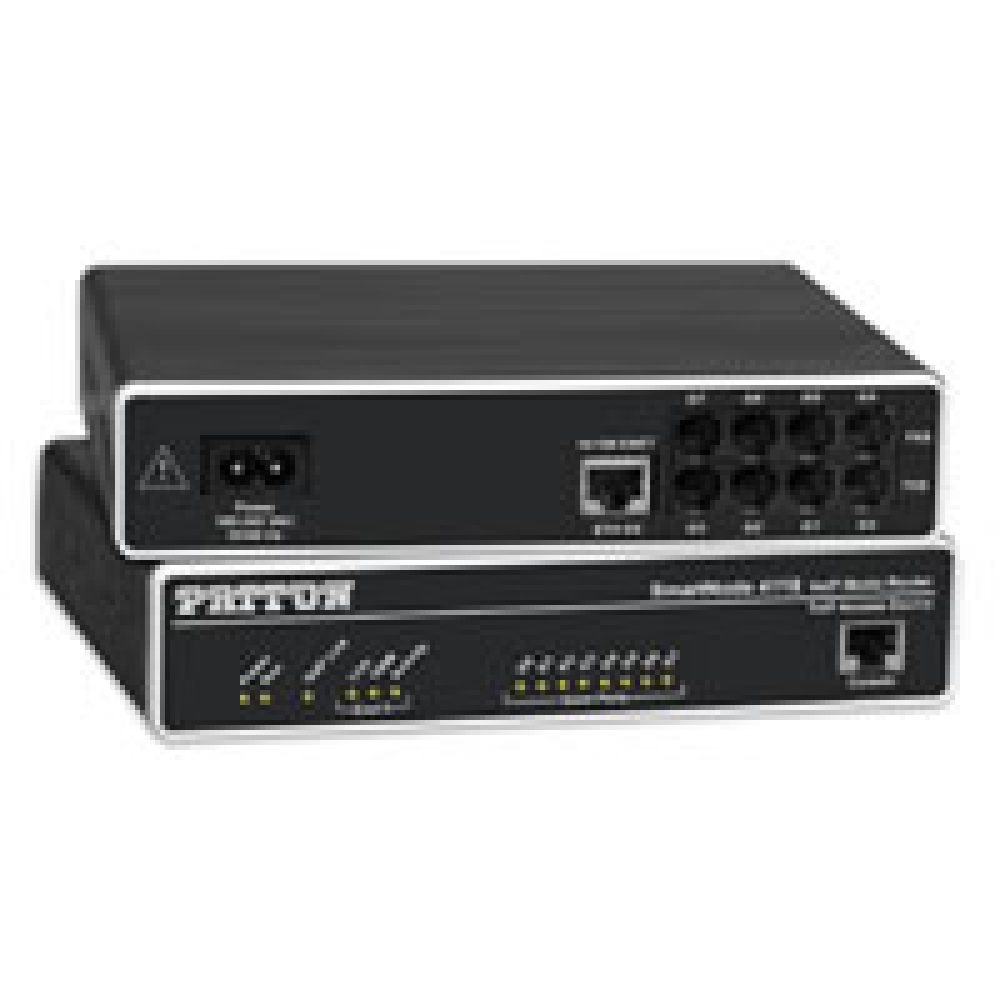

Patton SN4112 2-FXO VoIP Gateway SN4112/JO/EUI (DISCONTINUED)

Patton SmartNode 4112 2-FXO VoIP Gateway

The business-class Patton SmartNode 4112/JO/EUI VoIP Gateway is a 2 FXO port gateway that can be used to connect a VoIP System to the PSTN.

The SN4110 series is the perfect choice for phone-to-IP connectivity supporting up to 8 FXS ports or a combination of 4 FXS and 2 or 4 FXO ports. This model, the SN4112/JO/EUI, has 2 FXO ports.With its FXS analog ports the SN4110 connects to any legacy telephone or PBX and provides dial-tone, ringing, caller-ID and other services. When equipped with FXO ports, the local PSTN can be accessed enabling local calling and enhanced toll-bypass applications while using a single connected telephone. Flexible call integration allows per-port telephone numbers, programmable call progress tones, and distinctive ringing. With Telephony-over-IP (ToIP) call switching, calls can automatically be routed to the PSTN or the IP network while providing flexible numbering plans and end-to-end feature transparency. PPPoE, DHCP, and VLAN offers universal IP connectivity and optional IPSEC VPN with AES/3DES guarantees secure voice over the public network.

Patton Gateways deliver the legacy phone interfaces, service transparency, and flexible PSTN integration for true converged packet voice.

Patton SN4112/JO/EUI Product Overview

• Up to 8 FXS and/or FXO ports—Compact, reliable stand-alone VoIP gateway with different port options. Supports simultaneous voice or fax calls on all ports.
• Advanced Local Call Switching—Virtual interfaces and routing tables provide industry leading flexibility in call handling programming. Local call switching, soft fallback to alternative routes. Simultaneously connects to multiple SIP services/IP PBXs.
• Complete SIP and T.38 support—Supports the complete range of industry standard VoIP: SIP, H.323, T.38 fax, fax and modem handling, DTMF relay. Codecs G.729, G.723, etc.
• Easy Management & Provisioning—Web-based management, SNMP, command line interface. Automated mass provisioning for efficient large-scale deployments.
• Outstanding Interoperability—Proven integration for voice and T.38 fax with 3CX®, Asterisk™, PingTel™ and other leading IP PBX systems and soft switch vendors.

Patton SN4112/JO/EUI Features:

• Dual FXO ports
• 1 x 10/100 Ethernet
• H.323 and SIP protocol supported
• External UI Power
• 2-wire loop-start presented as an RJ-11/12
• 2.5kV line isolation Surge Protection: Voice Ports: Tip & Ring protected by 270 V side actor
• Off-hook and ring detection, Automatic line gain, Programmable ring count
• End of Call detection, Line drop, busy tone, battery reversal detection
• Hook-Flash Sending, Hook-Flash relay, DTMF send, detect, and relay Caller ID FSK CLI reception and relay (Bellcore/ANSI and ETSI/ITU), Call routing based on Caller ID
• Second dial-tone for two-stage DTMF dialing, Call routing based on DTMF numbers.
